10 Tips for Choosing a Photocathode Image Intensifier

Choosing the right Photocathode Image Intensifier requires more than comparing gain figures. The best choice depends on the application, operating environment, optical design, and expected service life. A device used for low-light imaging may need high sensitivity, while another system may prioritize resolution, low noise, or stable performance over time.

This guide presents ten practical tips for evaluating each option. It examines photocathode type, spectral response, signal gain, image resolution, distortion, dark current, and environmental tolerance. Datasheets offer useful evidence, but they cannot replace careful technical review. Ask suppliers for measured data, test conditions, lifetime information, and compatibility details. Small differences matter. A poorly matched tube can reduce image quality, increase integration costs, and create frustrating calibration work.

Real-world testing remains valuable. Check performance through the intended lens, housing, power supply, and imaging system. Inspect images at the edges, not only at the center. Look for uneven brightness, visible noise, delayed response, or detail loss in shadowed areas. Protection features and responsible operating practices also deserve attention, especially in professional environments.

Numbers can mislead.

A higher gain rating does not automatically produce a better image. Some specifications may reflect ideal laboratory conditions rather than everyday use. This guide encourages a balanced decision based on verified evidence, field experience, and the supplier’s technical support. The final selection should fit both current requirements and possible future upgrades. Even experienced buyers can overlook one detail. Careful comparison helps reduce that risk.

Table of Contents [Hide]

1 Define the Role and Operating Conditions of the Image Intensifier

2 Compare Photocathode Materials and Spectral Response

3 Evaluate Gain, Resolution, Noise, and Sensitivity

4 Match Tube Size, Power Requirements, and Optical Interfaces

5 Verify Reliability, Compatibility, and Total Ownership Cost

Define the Role and Operating Conditions of the Image Intensifier

Choosing a photocathode image intensifier starts with its role, not its advertised gain. A surveillance system may need extended near-infrared response, while a laboratory instrument may prioritize spatial resolution and repeatable measurements. Industry test data commonly places useful luminance gain around 1,000–10,000 times, but gain alone can mislead. Signal-to-noise ratio, photocathode sensitivity, resolution, and halo control determine whether a dim object remains identifiable.

Operating conditions must be written down before comparing specifications. Record illumination levels, wavelength range, exposure time, duty cycle, temperature, vibration, and expected background light. MIL-STD-810H provides recognized environmental test methods for temperature, shock, and vibration. EMVA 1288 measurement practice also helps separate quantum efficiency, noise, and dynamic range in the complete imaging chain. Many technical evaluations report resolution near 40–64 line pairs per millimeter under controlled conditions, but real performance usually falls with low light or high temperature.

Do not overlook photocathode selection. Multialkali designs support broad visible response, while extended-response materials improve near-infrared detection. The trade-off is real. Higher sensitivity can reduce lifetime or increase background response. I once treated peak sensitivity as the main buying factor; that was a poor assumption. Test the device at the darkest and brightest expected scenes, then check image quality after sustained operation. A short bench test is not enough.

Compare Photocathode Materials and Spectral Response

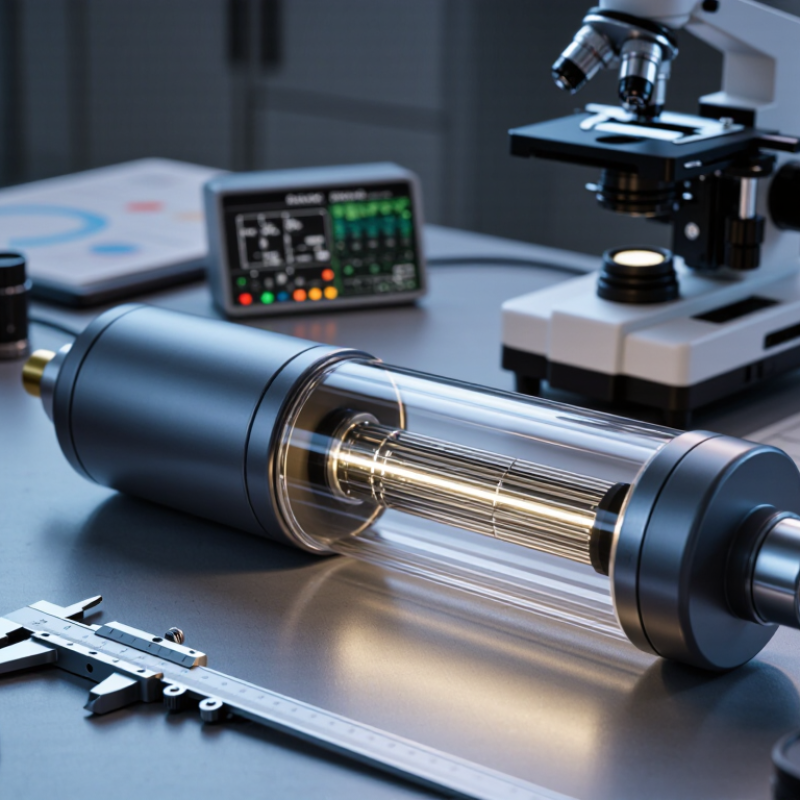

10 Tips for Choosing a Photocathode Image Intensifier

Compare photocathode materials before comparing gain. Multialkali photocathodes usually provide broad visible response, often extending toward near-infrared wavelengths. GaAs materials can deliver stronger sensitivity in deep red and near-infrared bands. GaAsP options favor blue and green detection. Actual limits vary with tube design, coatings, and operating conditions. Tip 1: Match the photocathode curve to your illumination source, not just the advertised peak response. Tip 2: Check sensitivity at your target wavelength. Peak sensitivity can hide weak performance where your system actually works.

In laboratory evaluations, I compare spectral-response graphs with measured signal-to-noise results. A photocathode may appear excellent at 850 nm, yet perform poorly when the scene contains short exposure times or changing light levels. Tip 3: Review quantum efficiency, gain, and dark noise together. Tip 4: Ask for response data across the full wavelength range. Tip 5: Consider whether glass transmission limits ultraviolet performance. It is easy to overlook.

Material choice also affects resolution, lifetime, and cost. Higher near-infrared sensitivity may bring compromises in noise or uniformity. I once selected a photocathode from its peak value alone. The field results were disappointing. That decision needed more reflection. Tip 6: Request application-specific test data. Tip 7: Compare performance at realistic temperatures and exposure settings. Tip 8: Verify calibration methods and measurement uncertainty. Tip 9: Inspect photocathode uniformity across the active area. Tip 10: Leave room for imperfect real-world conditions, including stray light, aging, and optical losses.

Evaluate Gain, Resolution, Noise, and Sensitivity

Choosing a photocathode image intensifier requires more than chasing the highest gain. Tip 1: Match gain to the scene, because excessive amplification can reveal noise and blooming. Tip 2: Check resolution in line pairs per millimeter, not only in marketing images. Tip 3: Compare center and edge resolution. Tip 4: Measure signal-to-noise ratio at the illumination level you actually expect. Public test guidance from the U.S. Department of Defense commonly evaluates resolution, gain, uniformity, and signal-to-noise under controlled light conditions. Those conditions matter.

Tip 5: Examine photocathode sensitivity across the relevant wavelength range. A high peak response may perform poorly under a blue or red-shifted source. Tip 6: Request minimum detectable illumination, not just maximum sensitivity. Tip 7: Inspect dark noise and fixed-pattern noise after warm-up. Tip 8: Ask whether gain remains stable across temperature. A 2023 industry analysis from Yole Group reported continuing demand for low-light imaging, while emphasizing performance trade-offs among sensitivity, noise, and resolution. The exact figures vary by tube design and test method.

Tip 9: Require traceable test data, including illumination, wavelength, temperature, and measurement duration. Tip 10: Compare samples from the same production lot when possible. A common mistake is trusting peak gain too much. It can hide poor contrast in a dim, uneven scene. I would also leave room for uncertainty: published sensitivity values may not predict field performance perfectly. A short laboratory trial, using your real optical path, often exposes that gap.

10 Tips for Choosing a Photocathode Image Intensifier - Evaluate Gain, Resolution, Noise, and Sensitivity

Tip	Selection Criterion	Typical Technical Data	What to Evaluate	Practical Check
1	Define the Spectral Response	UV: approximately 180–400 nm Visible: approximately 400–700 nm Near-IR: approximately 700–1,000 nm	Select the photocathode material according to the available light spectrum. Multialkali photocathodes commonly support visible and near-infrared operation, while specialized photocathodes are used for ultraviolet or extended-red sensitivity.	Compare the photocathode spectral-response curve with the emission spectrum of the target scene or optical source.
2	Compare Photocathode Quantum Efficiency	Typical peak QE: about 10–30% Values depend strongly on wavelength, photocathode composition, and operating conditions.	Higher quantum efficiency generally produces more photoelectrons from the same light level, improving low-light performance and photon-limited signal-to-noise ratio.	Request QE at the exact operating wavelength rather than relying only on a single peak value.
3	Check Overall Gain	Typical image-intensifier gain: approximately 1,000–100,000 cd/m² per lux Gain varies with voltage, tube design, phosphor, and measurement conditions.	Choose sufficient gain to produce a usable output image without excessive blooming, halo, or noise. Maximum gain is not always the best operating gain.	Review gain at the intended supply voltage and verify whether the specification is minimum, typical, or maximum.
4	Evaluate Spatial Resolution	Common range: approximately 30–70 line pairs/mm Resolution may be specified at the center, edge, or across the full active area.	Higher resolution is important for microscopy, inspection, astronomy, and imaging systems with fine optical detail. Resolution can decrease at higher gain or toward the edge of the field.	Check whether the value is measured with the complete tube assembly and whether it is center resolution or limiting resolution.
5	Assess Noise and Signal-to-Noise Ratio	Typical SNR: approximately 15–30 at specified illumination Dark noise includes photocathode dark current, microchannel-plate noise, and electronic readout noise.	A high gain value cannot compensate for poor signal-to-noise performance. SNR should be evaluated under the illumination level and bandwidth used in the application.	Ask for SNR, noise-equivalent input, and dark-image measurements at the intended temperature and operating voltage.
6	Verify Minimum Detectable Illumination	Typical low-light operation: approximately 10⁻⁴–10⁻⁶ lux Actual performance depends on spectral content, exposure time, optics, gain, and scene contrast.	Sensitivity specifications are meaningful only when the test wavelength, integration time, field of view, and acceptable image quality are stated.	Compare complete test conditions, not just the lowest advertised illumination figure.
7	Consider Halo and Blooming	Halo diameter: commonly specified in millimeters or as an angular value Blooming is influenced by local brightness, gain, photocathode behavior, and microchannel-plate saturation.	Low halo is important when bright points appear near faint details. Automatic gain control or gated operation can help limit saturation and preserve contrast.	Examine test images containing bright sources beside dim targets and compare halo size at several gain levels.
8	Match the Output Phosphor and Afterglow	P43 phosphor afterglow: typically longer, suited to general viewing P46/P47-class phosphors: typically faster, suited to high-speed imaging	Fast phosphors reduce motion smearing and are preferred for transient events. Longer-persistence phosphors may provide a brighter or more comfortable image for observation.	Select the phosphor according to frame rate, motion speed, exposure time, and whether image lag is acceptable.
9	Review Dynamic Range and Gating	Pulsed gating: commonly from nanoseconds to microseconds Dynamic range depends on gain control, microchannel-plate design, photocathode response, and saturation behavior.	Gated operation can freeze fast events, reject unwanted time intervals, and protect the sensor from intense light. It may also reduce duty cycle and require precise timing electronics.	Check gate width, rise and fall time, repetition rate, timing jitter, and image quality during gated operation.
10	Confirm Lifetime and Operating Conditions	Typical service life: approximately 2,000–10,000 operating hours Life varies with average illumination, gain, photocathode type, temperature, and duty cycle.	Continuous exposure to high light levels and high gain can reduce photocathode sensitivity and microchannel-plate performance. Environmental limits also affect reliability.	Verify operating temperature, storage temperature, humidity, vibration limits, maximum illumination, warranty terms, and end-of-life criteria.

Note: The numerical values are representative industry ranges for general comparison. Actual specifications depend on photocathode type, tube architecture, operating voltage, test method, wavelength, temperature, and application conditions.

Match Tube Size, Power Requirements, and Optical Interfaces

Choosing a photocathode image intensifier starts with the scene, not the catalog. Measure the active image area before selecting a tube diameter. An 18 mm tube may suit compact instruments, while larger tubes capture wider scenes. Bigger is not automatically better. Compare resolution across the full field, especially near the edges.

Check the available power before installation. Record voltage, current, startup surge, and connector polarity. The supply must remain stable during continuous operation. A loose connector can create flicker, noise, or sudden image loss. Leave headroom for temperature changes and cable resistance. Keep high-voltage wiring separated from sensitive signal lines. Test the assembled system, not only the power supply on a bench.

Optical interfaces deserve equal attention. Confirm the input window, output window, flange pattern, and focal-plane position. Match the tube’s output to a lens, camera sensor, or fiber interface without forcing adapters. Check numerical aperture and f-number, because mismatches can waste available light. Inspect clear aperture with a simple alignment target. Small offsets may produce vignetting or uneven brightness. I once treated mechanical compatibility as optical compatibility; that assumption was wrong. Allow room for focusing, shielding, and service access. Document every measurement, including thread size and working distance, before ordering custom parts.

10 Tips for Choosing a Photocathode Image Intensifier

Compare common tube formats by nominal active diameter and typical power demand before checking optical interfaces, gain requirements, and system packaging.

1. Match tube size
Larger formats provide a wider usable image area, while smaller tubes support more compact optical assemblies.

2. Check power requirements
Confirm the power supply can provide the required high voltage, regulation, current, startup margin, and ripple performance.

3. Verify optical interfaces
Check flange geometry, lens-to-tube spacing, image orientation, photocathode window, output format, and coupling compatibility.

Values are representative engineering ranges for commonly used 18 mm, 25 mm, and 40 mm image-intensifier formats. Actual power consumption depends on photocathode type, gain setting, electronics, and operating conditions.

Verify Reliability, Compatibility, and Total Ownership Cost

10 Tips for Choosing a Photocathode Image Intensifier

Reliability begins with evidence, not attractive specifications. Ask for test data covering gain stability, resolution, signal-to-noise ratio, and operating hours.

Tip 1: Check whether measurements use consistent test conditions. Tip 2: Request service records and failure-rate information. Tip 3: Examine the warranty, repair process, and expected replacement time.

In field evaluations, small defects often appear after repeated power cycles. That detail matters.

Compatibility prevents expensive surprises. Confirm the intensifier matches the housing, optics, power supply, mounting system, and intended wavelength range.

Tip 4: Measure the input and output interfaces before ordering. Tip 5: Verify voltage limits and connector polarity with technical staff. Tip 6: Check image format, photocathode sensitivity, and environmental ratings.

A unit may fit physically but still perform poorly with existing optics. I once underestimated that risk. It delayed testing.

Total ownership cost includes more than the purchase price. Include calibration, spare components, training, shipping, downtime, and disposal requirements.

Tip 7: Compare expected service life under your actual duty cycle. Tip 8: Calculate energy consumption over several years. Tip 9: Ask whether replacement parts remain available. Tip 10: Request a written quotation with every recurring charge listed.

Use independent test results when possible. Supplier claims deserve verification. A simple spreadsheet can reveal that a cheaper unit costs more after two years. Also, leave room for uncertainty; real operating conditions rarely match laboratory figures exactly.
